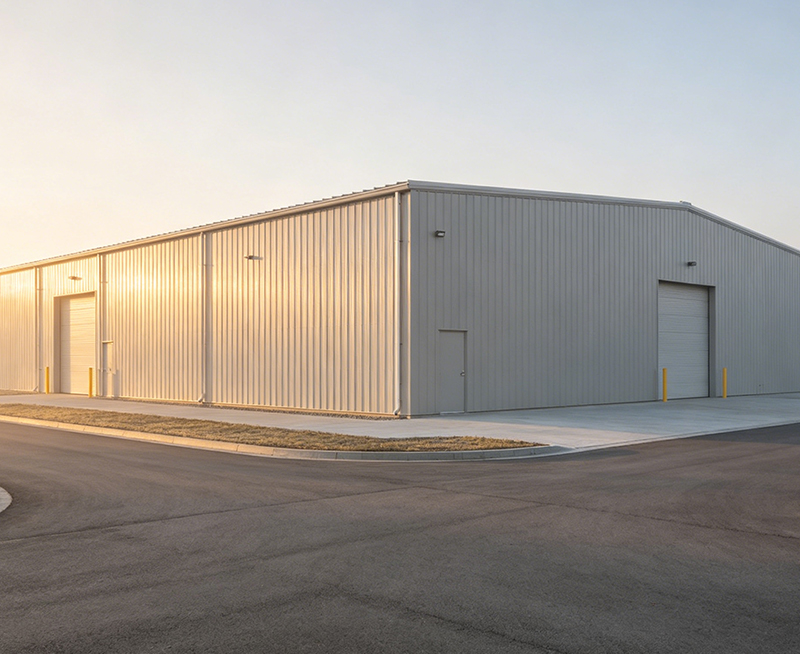

Our single-layer steel structure workshop is designed to be robust, durable, and energy-efficient, making it an ideal choice for manufacturing plants, warehouses, and other large-scale industrial facilities. Constructed with high-quality steel, it features high structural strength, easy customization, and the ability to withstand heavy loads and harsh environments.
These steel structures are fully designed with your business needs in mind. They are quick to assemble, cost-effective, and sustainable, providing a solid foundation for any industrial project.
Core Product Features
Large-span design ranging from 20m to 60m offers column-free space, maximizing the usable area for production and storage.
Customizable design can adapt to various industrial uses, from small workshops to large-scale manufacturing bases.
It has excellent seismic performance, ensuring structural safety even in earthquake-prone areas.
Prefabricated components allow for quick installation and disassembly, significantly shortening the construction period.
The 100% recyclable steel causes low pollution during the construction process, conforming to global sustainable development concepts.
Advantages of Single-Layer Steel Structure Workshop
Fast Construction Speed
Prefabricated in the factory and quickly assembled on-site, the construction period can be shortened by 30% - 50% compared with traditional concrete buildings, which greatly saves project time and cost.
High Cost-Effectiveness
The light weight reduces the foundation cost, and the overall cost is more competitive. Compared with similar concrete structures, it can save 15% - 20% of the comprehensive cost.
High Space Utilization
The column-free design maximizes the usable space, facilitating the placement of large-scale production equipment and logistics operations, and improving work efficiency.
Strong Adaptability
It supports future expansion or renovation. The modular design allows horizontal splicing, which is convenient and quick without damaging the original structure.
High Safety Performance
It strictly implements the "Code for Construction Quality Acceptance of Steel Structure Engineering", conducts 100% inspection of the high-strength bolt final tightening torque, and conducts secondary ultrasonic flaw detection sampling of welds to ensure construction quality.
Our Product Specifications
|
Category |
Specifications |
Notes |
|
Main Structure |
Steel Columns |
H-beam, box column, material Q235/Q345; Customizable size according to span and load requirements. |
|
Steel Beams |
H-beam, material Q235/Q345; Supports large spans, up to 60 meters maximum. |
|
|
Roof Truss |
Steel truss or beam structure; Provides stable support for various types of roofs. |
|
|
Secondary Structure |
Purlin |
C/Z section, material Q235; Standard spacing is 1.5 meters, customizable. |
|
Support System |
Angle steel, round steel; Ensures structural stability and wind resistance. |
|
|
Wall Purlin |
C-section, material Q235; Connects the wall to the main structure, enhancing overall rigidity. |
|
|
Envelope System |
Roof |
Sandwich panel (polyurethane/rock wool/glass wool), color steel plate, single-layer steel plate; Thickness 50mm-100mm, with heat insulation and waterproof functions. |
|
Wall |
Sandwich panel (polyurethane/rock wool/glass wool), color steel plate, single-layer steel plate; Thickness 50mm-100mm, combining aesthetics and functionality. |
|
|
Other Components |
Skylight |
Transparent panel or glass skylight; Provides natural lighting and improves the indoor environment. |
|
Ventilation Equipment |
Natural ventilation or mechanical ventilation system; Customizable according to customer needs. |
|
|
Drainage System |
PVC downspouts, steel drainage gutters; Ensures effective drainage and prevents water accumulation. |
|
|
Doors and Windows |
Aluminum alloy or steel doors and windows; Customizable size and opening method available. |
|
|
Design Parameters |
Span: 20m-60m (larger span available on request); Height: 6m-18m (designed according to usage and load requirements); Load-bearing capacity: Wind load, snow load, seismic load (compliant with local building codes). |
|
|
Materials & Craftsmanship |
Steel |
Q235/Q345, surface treatment (galvanizing, painting); Ensures corrosion resistance and aesthetics. |
|
Connection Method |
Bolt connection or welding connection; Ensures structural stability. |
|
|
Sustainability |
Recyclable Materials |
100% recyclable steel; Reduces construction waste and conforms to sustainable development principles. |
|
Energy Efficiency |
Optimized envelope and lighting design; Reduces energy consumption and improves efficiency. |
|
|
Green Building Certification |
Compliant with BREEAM and other green building standards; Provides environmentally friendly and sustainable building solutions. |
|
|
Service & Support |
Technical Support |
Comprehensive support in design, installation and maintenance; Provides detailed installation drawings and remote guidance. |
|
Warranty |
50 years; Covers main structure and envelope system. |
|
|
Installation Service |
On-site installation or remote guidance; Provided according to customer requirements. |
Notes:
The above specifications are standard configurations; specific parameters can be customized according to customer needs.
We provide one-stop service, including design, manufacturing, installation, and after-sales support, to ensure project success. We adopt BIM and SAP2000 software for 3D modeling and secondary verification during the design stage to ensure the accuracy of each component and construction safety.
Applications of Single-Layer Steel Structure Workshop
|
Application Fields |
Specific Uses |
|

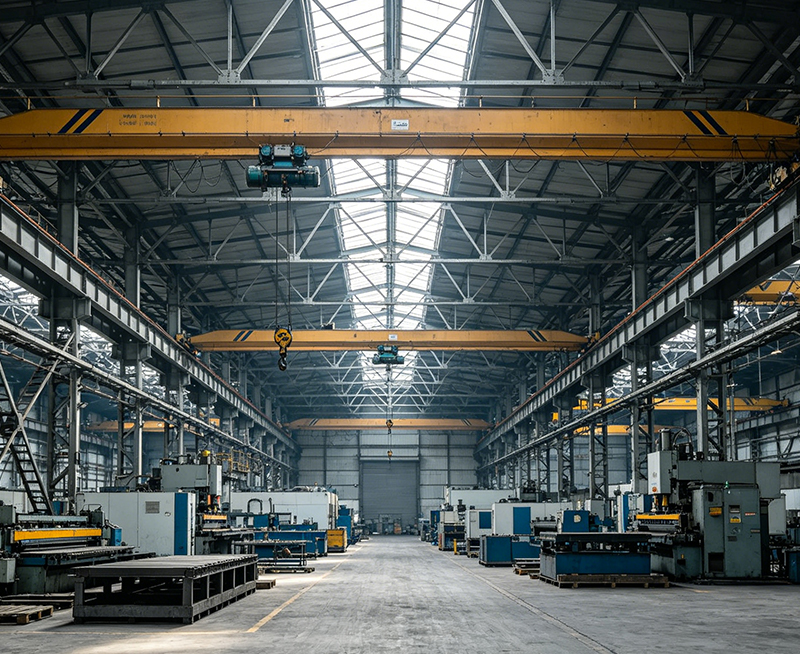

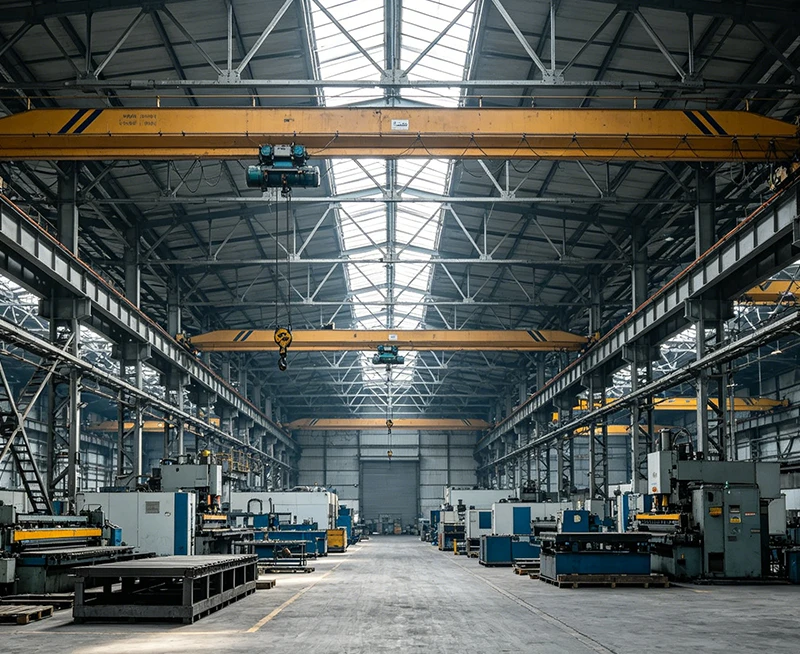

Industrial Workshop |
Production workshops, manufacturing plants, processing facilities, new energy product production bases, etc. |
|

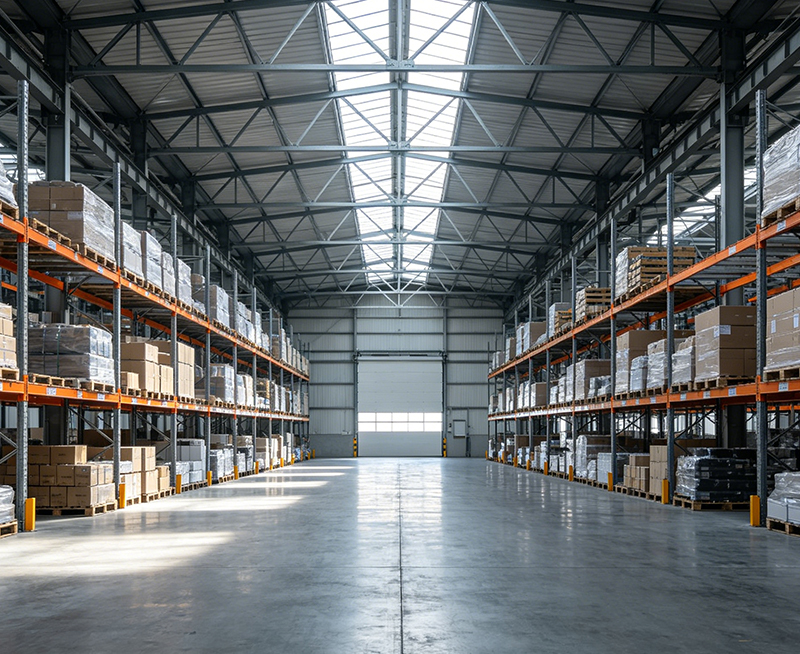

Warehouse |
Cargo storage centers, logistics distribution centers, raw material warehouses, finished product warehouses. |
|
Agricultural Facilities |
Livestock farms, greenhouses, agricultural machinery warehouses, agricultural product processing workshops. |
|
Commercial Buildings |
Supermarkets, exhibition halls, retail centers, large-scale commercial pavilions. |
|
Others |
Hangars, stadiums, parking lots, large-scale maintenance workshops. |
Our Design Highlights
When designing single - layer steel structure workshops, we focus on multiple aspects to ensure their safety, stability, and sustainability:
1. Load Calculation: Scientifically calculate wind load, snow load, and seismic load to ensure that the structure can withstand various harsh environments. Conduct secondary verification through professional software to achieve "double insurance".
2. Temperature Expansion Joints: Effectively prevent structural deformation caused by temperature changes, ensuring long - term structural stability.
3. Support System: Optimize the design of the support system to ensure structural stability and rigidity, especially suitable for large - span and high - load projects.
4. Drainage System: Reasonably design the roof drainage system, match high - quality drainage gutters and downspouts to prevent water accumulation and structural damage.
5. Recyclable Materials: 100% recyclable steel reduces construction waste and conforms to global green development trends.
6. Energy - Saving Design: Optimize the envelope structure and lighting design, select high - performance thermal insulation materials, reduce energy consumption, and improve operational efficiency.
7. Green Building Certification: Comply with BREEAM, LEED, and other green building standards, provide environmentally friendly and sustainable building solutions, and meet the environmental protection requirements of various countries.
How Much Does a Single-Layer Steel Structure Workshop Cost?
The specific price of a single-layer steel structure workshop depends on the following factors:
● Span and Height: The larger the span and the higher the height, the higher the cost. Especially for ultra-large span projects over 50 meters, structural design and material selection need to be optimized.
● Material Selection: The type of steel (such as Q235, Q345) and envelope materials (such as sandwich panels, color steel plates) will affect the cost. High-performance thermal insulation and corrosion-resistant materials will appropriately increase the material cost.
● Insulation Requirements: The higher the insulation performance requirements, the higher the material cost. Different regions (such as cold areas and high-temperature areas) have different insulation needs, which will affect the overall cost.
● Customization Requirements: Special design or functional requirements (such as ultra-large load-bearing, special ventilation systems, green building certification) may lead to price fluctuations.
We offer personalized quotation services and conduct detailed calculations based on the specific requirements of customers to ensure transparency and rationality. Whether it is a small workshop or a large - scale factory, we can provide the most cost - effective solution.
Service & Support
We offer comprehensive services and support to customers to ensure the smooth design, construction, and operation of single - layer steel structure workshops:
Design Support: We provide professional design services, including structural optimization, load calculation, and customized solutions. Our professional design team utilizes advanced design software such as BIM to conduct 3D modeling and in - depth design, ensuring the rationality and safety of the design.
● Installation Guidance: We offer detailed installation drawings and on - site technical guidance to guarantee construction quality. For ultra - large and ultra - heavy components, we will provide professional transportation and hoisting guidance to address the challenges of over - limit transportation and precise hoisting.
● Maintenance Support: We provide regular inspection and maintenance suggestions to extend the building's service life, including guidance on galvanized layer repair, component inspection, and other matters.
● Warranty: We offer a 50 - year warranty for single - layer steel structure workshops, covering the main structure and envelope system, ensuring that customers can use the workshops without worry for a long time.
● Installation Service: We provide remote technical support to resolve construction - related issues via phone calls, videos, etc., ensuring the smooth progress of installation. On - site installation services can also be provided according to customer requirements.
Are you looking for a reliable, efficient, and sustainable single - layer steel structure workshop solution for your industrial project? Contact us now to get a customized quotation, and let's work together to turn your industrial vision into reality!
