We provide full custom design, manufacturing, and global delivery for portal frame steel workshops:
Overview Portal Frame Steel Structure Workshop is a prefabricated, clear-span industrial building system designed for factories, warehouses, production plants, logistics centers, and workshops. Engineered with high-strength H-section steel beams and columns, it offers superior structural stability, large clear spans, fast assembly, and full customization to meet your operational needs.
Key Features & Advantages
Large Clear Span & Open Space • Clear span up to 30m+ without internal columns • Maximum usable floor area for machinery, production lines, and storage • Ideal for heavy equipment, overhead cranes, and flexible layout
High Strength & Structural Stability • Main frame: Q235 / Q355 grade H-beam steel • Wind resistance: up to 120km/h (customizable for typhoon zones) • Snow load: 0.3–1.5kN/m² (adjustable per region) • Seismic resistance: Grade 8–9 • Service life: 50+ years with proper maintenance
Fast Construction & Cost Efficiency • All components prefabricated in factory with precision cutting & welding • On-site bolt-on assembly — no on-site welding required • Construction time 30–50% faster than concrete buildings • Lower foundation cost due to light weight • Reduced labor & overall project cost
Durable & Low Maintenance • Hot-dip galvanized or epoxy paint anti-corrosion treatment • Weather, rust, fire, and pest resistant • Minimal long-term maintenance
Eco-Friendly & Recyclable • 100% recyclable steel materials • Low construction waste & pollution • Energy-efficient insulation options available
Full Customization • Custom width, length, eave height, roof shape • Optional mezzanines, cranes, skylights, ventilation, insulation • Flexible door/window placement & size
Our Customization & Turnkey Services
We provide full custom design, manufacturing, and global delivery for portal frame steel workshops:
Custom Design & Engineering
• Free CAD / BIM design based on your layout, loads, and local codes
• Structural calculation & wind/snow/seismic analysis
• Compliance with ISO, CE, ASTM, AISI standards
Prefabricated Manufacturing
• Factory production under ISO9001 quality control
• Automatic cutting, welding, sandblasting, painting/galvanizing
• All parts labeled for easy on-site assembly
Global Export & Logistics
• Professional export packaging (steel frame + sandwich panels)
• Sea freight, customs clearance, documentation support
• Experience exporting to Africa, Europe, Southeast Asia, Americas
Turnkey Installation Support
• Detailed installation manual & drawings
• On-site engineer guidance (optional)
• Long-term after-sales service & warranty
Optional Add-Ons
• Roof & Wall Cladding: Corrugated steel sheet, EPS/PU/rock wool sandwich panels
• Insulation: Thermal, soundproof, fire-resistant materials
• Doors & Windows: Rolling shutter, sliding door, aluminum/steel windows
• Crane Systems: Overhead crane (5–50t) compatible
• Mezzanine Floors: Double space for office/storage
• Ventilation, Skylights, Gutters, Downpipes

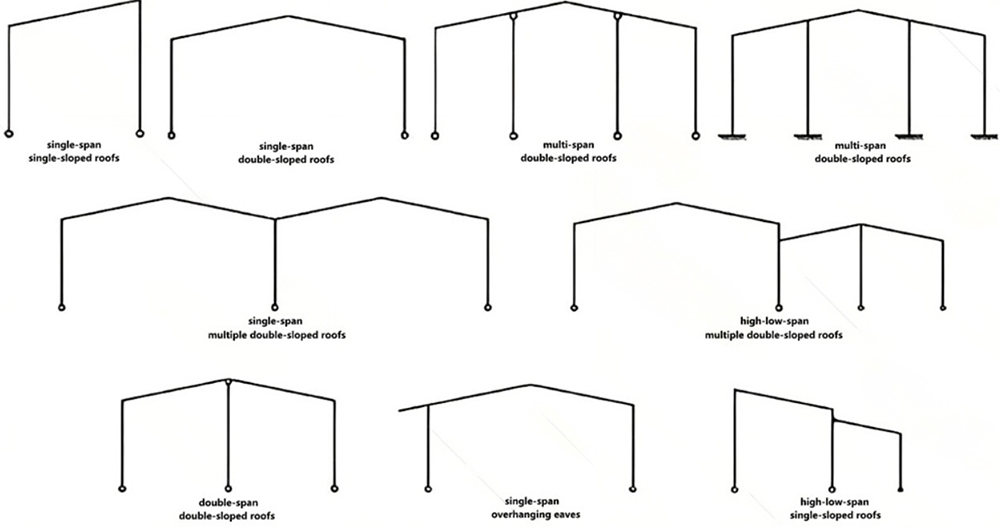

Portal Frame Types
We offer standard and custom portal frame designs to match your span, load, and aesthetic needs:
1.Single-Span Portal Frame
Clear span: 9–30m ◦ Best for: Small to medium workshops, warehouses
2. Multi-Span (Double/Triple) Portal Frame
Combined clear span: 30–60m+
Best for: Large factories, logistics centers, wide production halls
3. Slope Roof Portal Frame
Standard roof slope: 1:10 to 1:5
Good drainage, ideal for heavy snow regions
4. Flat Roof / Low-Slope Frame
Modern appearance, suitable for urban industrial parks
Standard Specifications
|
Item |
Details |
|
Main Frame |
H-section steel (Q235B / Q355B) |
|
Clear Span |
6–30m (single span); 30–60m+ (multi-span) |
|
Eave Height |
4–12m (customizable) |
|
Length |
Unlimited (custom per bay distance: 6–9m) |
|
Roof & Wall Purlins |
C/Z section galvanized steel |
|
Surface Treatment |
Sandblasting + epoxy paint / hot-dip galvanizing |
|
Wind Load |
0.3–1.2kN/m² (custom) |
|
Snow Load |
0.3–1.5kN/m² (custom) |
|
Seismic Grade |
6–9 (per region) |
|
Fire Resistance |
1–3 hours (with fireproof coating) |
|
Life Span |
50+ years |
|
Certifications |
ISO 9001, CE, SGS (custom available) |
Applications
• Manufacturing Factories
• Industrial Workshops
• Warehouses & Logistics Centers
• Production Plants
• Assembly Halls

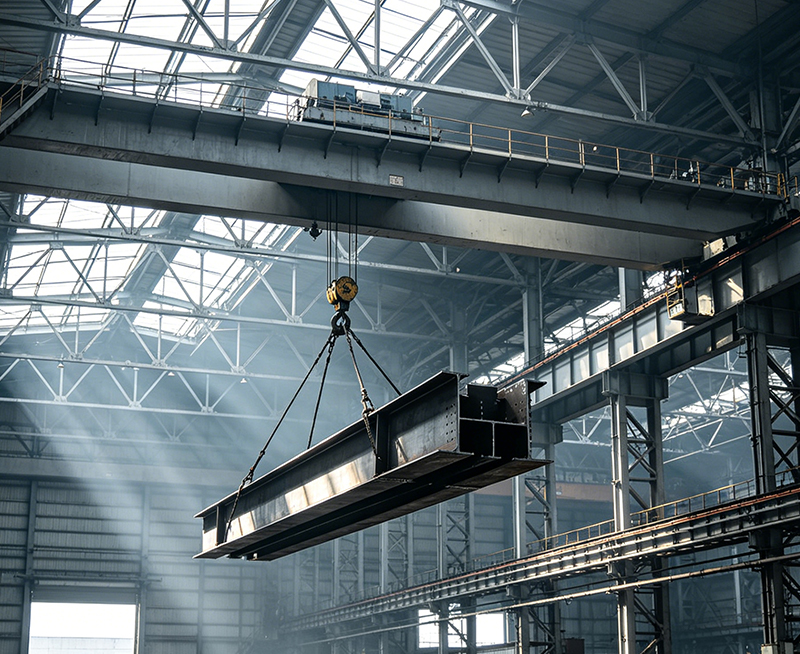

• Workshops with Overhead Cranes
• Agricultural & Commercial Storage
Why Choose Us?
• 10+ years in steel structure design & manufacturing
• Custom solutions for every project size & budget
• Competitive pricing & fast lead time
• One-stop service: design → production → shipping → installation support
Get a Custom Quote
Tell us your requirements:
Length × Width × Eave Height
Wind / snow load (local region)
Crane requirements (if any)
Cladding & insulation needs
Delivery destination
Contact us today for a free design and detailed quotation!
