Overview: Uninterrupted Space for Unparalleled Industrial Efficiency

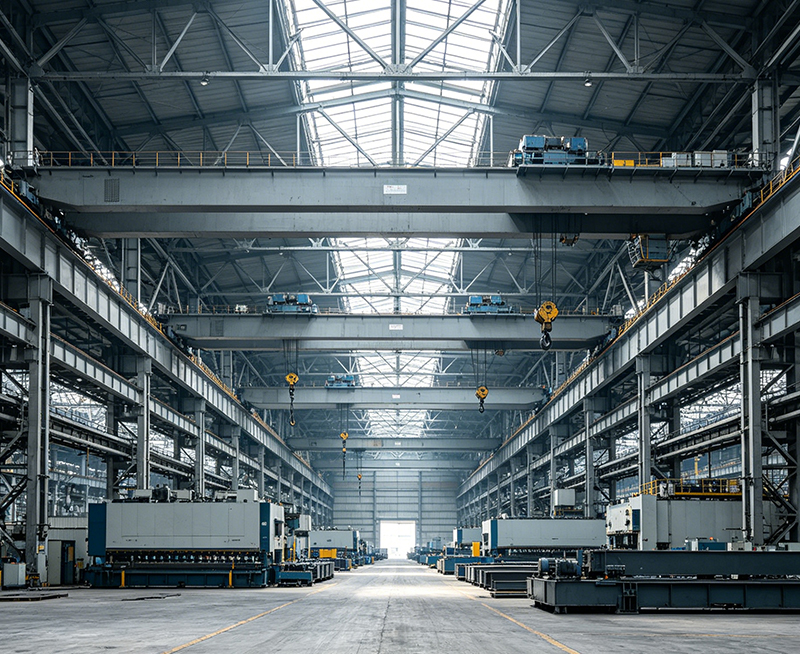

In the realm of large - scale manufacturing, heavy assembly, logistics, and aviation maintenance, the building itself is a critical component of your production engine. Our Multi - Span Steel Structure Industrial Workshop Building is engineered for industries that demand vast, continuous, column - free spaces, exceptional load - bearing capacity, and ultimate layout flexibility. By seamlessly integrating multiple long - span bays under a single, robust structural system, we create super - sized, obstruction - free interiors that liberate floor planning, enabling the optimal deployment of heavy production lines, oversized equipment, and highly efficient material flow paths. Compared to traditional single buildings or scattered complexes, a multi - span steel structure not only maximizes land and spatial utility but also sets a new standard in construction speed, lifecycle cost, and future scalability for modern industrial operations.
Deep Customization Services: Your Production Flow, Our Blueprint
We believe superior industrial architecture is designed "from the inside out." We are not just manufacturers; we are your industrial space planning partner.
Capacity-Driven Master Planning
Our engineers collaborate with you to analyze your production process, logistics volume, equipment list, and future capacity plans, reverse-engineering the optimal number of spans, width combinations, column grid dimensions, clear internal height, and functional zoning.
Seamless Integration of Lifting Systems
We design and integrate multi-capacity crane systems (e.g., 5-ton to 50-ton overhead cranes, including double-girder cranes and underslung cranes) directly into the primary structure from the outset, with pre-designed foundations for heavy machinery.
Cladding & Insulation for Specific Environments
Choose from a full range: standard corrugated sheets, durable PVDF-coated panels, or highly insulated sandwich panels (PU/PIR/Rockwool core) for temperature and humidity-controlled environments like paint shops or food processing.
Specialized Access & Logistics Design
Customize an array of oversized access points—sectional doors, rolling shutters, bi-fold doors—and loading dock systems tailored to your traffic flow and equipment size.
Integrated Utility & Mezzanine Solutions
We pre-plan raceways for electrical, data, and piping. Design and build mezzanine floors for offices, control rooms, or parts storage, maximizing vertical space without compromising the main floor.
Future-Proofing for Expansion
Our modular design philosophy ensures that future expansion—adding length, width, or even an entirely new wing—is a straightforward process, minimizing future downtime and investment.
Key Advantages
Why Multi-Span Steel Workshops are the Smart Choice for Large-Scale Industry
A Comprehensive Leap Beyond Conventional Construction
|
Comparison Dimension |
Our Multi-Span Steel Workshop |
Traditional Single Concrete Factory |
Cluster of Separate Sheds |
|
Space Efficiency & Layout |
Superior. Continuous, vast column-free space allows for Continuous, Ultra-Long Production Line Layout, shortest material flow, with space utilization exceeding 90%. |
Requires numerous internal support columns, dividing space and hindering equipment layout and logistics. |
Space is fragmented. Inter-process material transfer requires movement between buildings, complicating flow and reducing efficiency. |
|
Construction Cost & Speed |
Highest Cost-Effectiveness. Over 80% prefabrication reduces on-site time by 40%-60%. Modular design significantly lowers cost per square meter, especially for large-area projects. |
High cost, very long construction cycle (years), significant capital tie-up, and long ROI period. |
Typically higher total cost (duplicated foundations, walls, etc.), longer combined construction time, and complex management. |
|
Structural Performance & Safety |
Excellent. High-strength steel offers superior seismic, wind (typhoon-resistant), and snow load resistance. Fireproofing and anti-corrosion treatments ensure long-term safety. |
High self-weight, relatively poorer seismic performance. Prone to cracking, with increasing maintenance costs. |
Structural redundancy, but potential issues at connections and differential settlement; overall integrity is weaker. |
|
Production Process Optimization |
Ideal for continuous, automated production. Integrates the entire workflow—raw material storage, processing, assembly, testing, finished goods dispatch—into a single linear space for "one-stop" manufacturing. |
Column grids restrict the planning of Automated Storage/Retrieval Systems (AS/RS) and AGV paths, hindering automation upgrades. |
Physical separation breaks production flow, making automation system integration extremely difficult and costly. |
|
Flexibility & Expandability |
Ultimate Flexibility. Can be easily extended laterally or have additional parallel spans added according to capacity growth, enabling modular expansion without disrupting existing operations. |
Nearly impossible to expand. Capacity increases often require building on a new site, leading to management fragmentation. |
Expansion is constrained by the original layout, usually requiring separate new builds and creating more dispersed operations. |
|
Operational & Maintenance Cost |
Very Low. Minimal building maintenance. Large roof area allows for integration of energy-saving skylights and PV systems. Unified HVAC/ventilation systems are more efficient. |
High energy loss (poor insulation), high long-term structural maintenance costs. |
Decentralized operations multiply energy, security, and management costs. |
Technical Specifications & Engineering Standards
Our buildings are designed to international codes (AISC, Eurocode, or local equivalents) for safety, performance, and longevity.
|
Component |
Specification / Options |
|
Primary Structural Frame |
Material: High-tensile steel (Q345B equivalent to ASTM A572 Gr.50/EN 10025 S355). Connections: High-strength bolted (10.9 Grade) or welded as per design. |
|
Span Configuration |
Typical Multi-Span Range: Total building width from 40m to 100m+, composed of 2, 3, 4, or more spans (e.g., 20m+20m, 24m+24m+24m). Clear Eave Height: 8m to 15m+ standard, customizable. Bay Length: Customizable, typically in 6m, 7.5m, or 9m increments. |
|
Secondary Framing |
Purlins & Girts: High-grade galvanized C/Z sections, cold-formed for strength and precision. |
|
Roof & Wall System |
Cladding: 0.5mm-0.8mm thick galvanized steel sheets with PVDF or SMP paint finish (various colors). Insulation: Optional 75mm-150mm thick polyurethane (PU/PIR) or rock wool sandwich panels for superior thermal performance. |
|
Design Load Capacity |
Wind Load: Designed per local code or specific project requirements (e.g., up to 200 km/h). Snow Load: Customized per geographic location. Crane Load: Designed for integrated runway beams and specific crane capacities (e.g., 5T, 10T, 20T, 50T). Live Load: As required for specific use (maintenance, storage). |
|
Surface Protection |
Steel Members: Hot-dip galvanized (minimum 275g/㎡ zinc coating) or primed & painted with high-performance epoxy/polyurethane systems for harsh environments. |
|
Foundation & Anchorage |
Detailed design drawings provided for anchor bolt layout and base plates. Concrete foundation work is typically handled by the client or a local contractor per our specifications. |
Applications: Engineered for Demanding Industries
Our multi-span buildings form the backbone of facilities where scale, strength, and workflow efficiency are non-negotiable.
● Heavy Manufacturing & Assembly: Automotive and aerospace component plants, heavy machinery fabrication, shipbuilding modules.

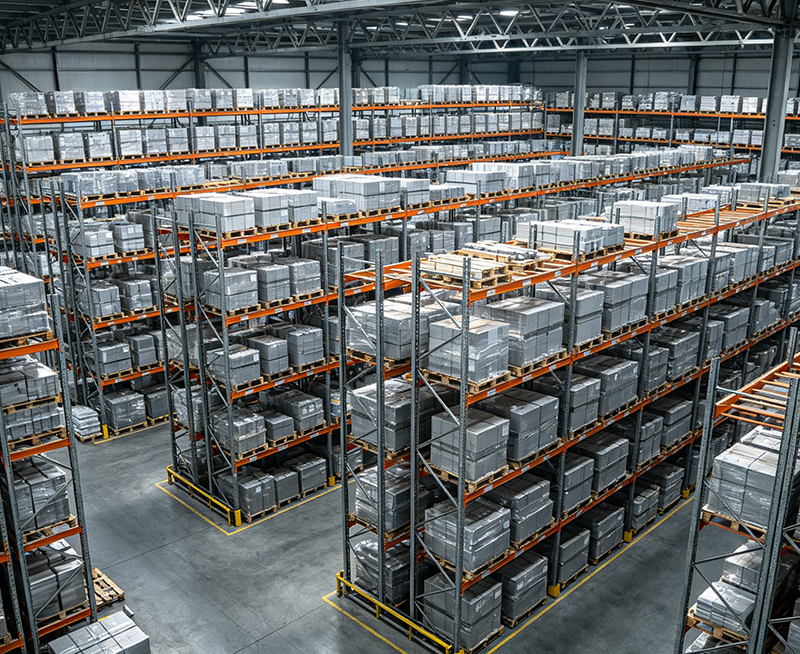

● Logistics & Distribution Mega-Centers: Regional hubs, cross-docking facilities, bulk commodity storage.
● Aviation & Rail Maintenance: Aircraft hangars for wide-body jets, railcar maintenance and repair depots.
● Energy & Industrial Processing: Equipment halls for power generation, mining equipment workshops, recycling, and waste management plants.
● Agricultural Industrial Complexes: Large-scale machinery storage, grain processing and storage facilities, packing plants.
Our Project Process: Partnership from Concept to Operation
● Initial Consultation & Needs Analysis: We discuss your operational requirements, site conditions, budget, and long-term vision.
● Preliminary Design & Proposal: Our engineering team delivers preliminary layout drawings, 3D visualizations, and a comprehensive project proposal within 7-10 working days.
● Detailed Engineering & Contract Finalization: We refine the design based on your feedback, conduct full structural calculations, finalize all specifications, and sign the contract.
● Precision Fabrication & Quality Control: All steel components are fabricated in our automated facility using CNC machinery, followed by rigorous quality checks at every stage.
● Professional Packaging & Global Shipping: Components are pre-assembled into bundles, clearly marked, packaged for sea/land transport, and shipped with complete documentation (packing list, drawings, manuals).
● On-Site Guidance & Commissioning Support: We provide exhaustive erection drawings, step-by-step manuals, and offer optional on-site technical supervision or remote support to ensure smooth construction.
Request Your Custom Industrial Building Quote
Take the first step toward a facility that empowers your growth. Contact our engineering team for a free, no-obligation consultation and preliminary design.
To help us prepare the most relevant proposal, please provide:
1.Primary intended use of the building and project location (country/region)?
2.Desired approximate dimensions (total width, length, clear height) and any specific crane requirements?
3.Key operational priorities (e.g., temperature control, natural lighting, expansion plans)?
