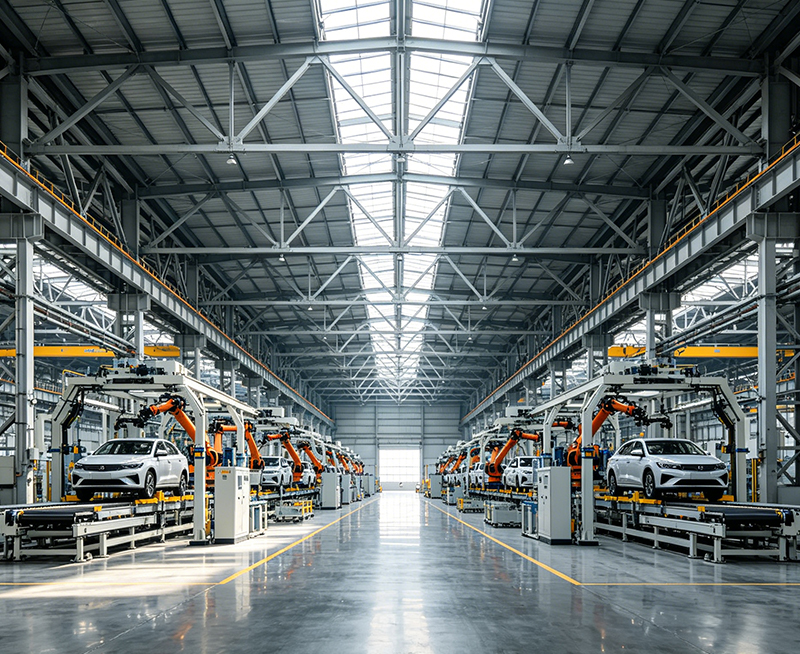

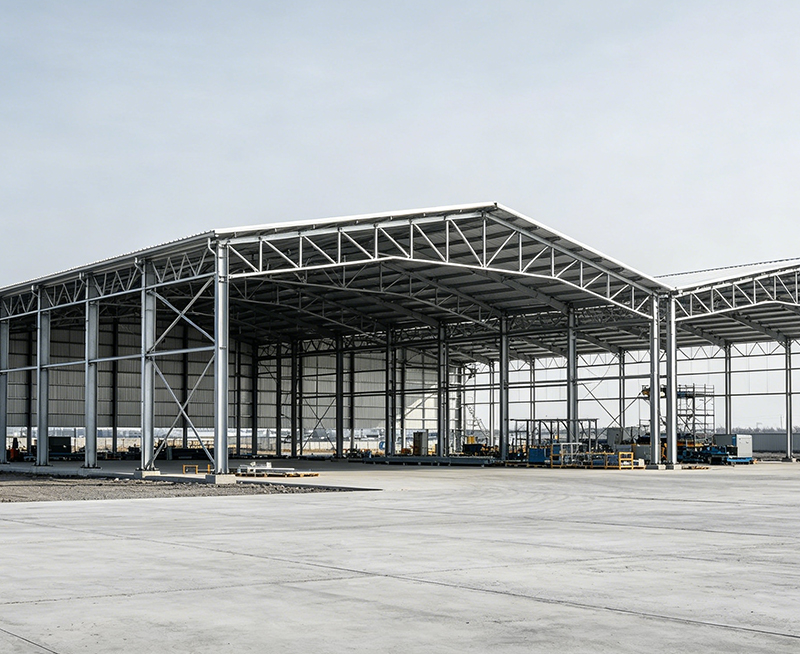

Overview: Maximize Space & Efficiency with Double - Span Design
In the realm of industrial manufacturing, warehousing, and large - scale operations, space is a precious asset. Our Double - Span Steel Structure Workshop Building is engineered to provide vast, column - free interiors that maximize the usable floor area, streamline the workflow, and effortlessly accommodate heavy machinery. By integrating two long - span bays under a single sturdy roof, this design offers unparalleled flexibility and cost - effectiveness when compared to traditional single - span or multi - column structures. Ideal for factories, assembly plants, logistics hubs, and repair facilities, our prefabricated steel buildings combine rapid construction, exceptional durability, and complete customizability to meet the exact demands of your industrial operation.
Customization Services
We don't just sell buildings; we offer tailor - made industrial solutions. Every aspect of your double - span workshop can be customized to perfectly fit your operational workflow.
Dimensions & Layout
Choose the exact width of each span, total length, eave height, and roof pitch. Design internal partitions, office mezzanines, and traffic lanes.
Access & Logistics
Specify the size, type (roller shutter, sliding, sectional), and location of multiple overhead doors, personnel doors, and loading docks.
Crane & Lifting Systems
We design and integrate crane runways (top-running or underhung) and lifting points into the primary structure, with capacities tailored to your equipment (e.g., 5-ton, 10-ton, 20-ton overhead cranes).
Cladding & Insulation
Select from various roof and wall panels: economical corrugated sheets, durable PVDF-coated panels, or highly insulated sandwich panels (PU/PIR core) for temperature-controlled environments.
Ventilation & Lighting
Customize roof ventilators, ridge caps, wall louvers, and skylight panels to ensure adequate air circulation and natural daylight, reducing energy costs.
Special Features
Include mezzanine floors for office space, fire-rated systems, acid/alkali-resistant coatings for specific industries, or solar panel-ready roofs.
Core Technical Parameters
Key Advantages: Why Choose a Double-Span Steel Workshop?
Superior to Conventional Construction Methods
|
Feature |
Our Double-Span Steel Workshop |
Traditional Concrete/Brick Factory |
Single-Span Steel Shed |
|
Internal Space & Layout |
Vast, column-free space across two spans. Unobstructed floor plan allows for flexible machinery layout and efficient material flow. |
Internal columns often required for large areas, obstructing layout and limiting equipment placement. |
Limited clear span width; larger areas require multiple bays with internal columns. |
|
Construction Speed |
Extremely Fast. Pre-engineered components allow for erection in weeks, minimizing project downtime. |
Very Slow (6-18 months). Weather-dependent, labor-intensive, and involves curing times. |
Fast, but for equivalent total width, may require more complex framing or interior supports. |
|
Cost-Effectiveness |
Lower overall lifecycle cost. Reduced construction time, minimal maintenance, and energy-efficient design options. |
High initial investment and ongoing maintenance. Long ROI period. |
Cost-effective for smaller widths, but less efficient for very wide buildings requiring clear space. |
|
Strength & Durability |
Excellent. High-strength steel resists corrosion, fire, pests, and extreme weather (high winds, heavy snow). Long service life (>50 years). |
Durable but susceptible to cracking over time. Poor seismic performance compared to steel. |
Good, but double-span design optimizes material use for large clear spaces, enhancing structural efficiency. |
|
Customization & Expansion |
Highly Customizable. Easily tailored to exact dimensions, door/window placements, crane systems, and insulation needs. Modular design simplifies future expansion. |
Very difficult and expensive to modify or expand after completion. |
Customizable, but double-span offers a more integrated solution for specific wide-space requirements. |
|
Energy Efficiency |
Can be optimized with insulated wall/roof panels, skylights, and ventilation systems to reduce operational costs. |
Generally poor insulation unless expensively retrofitted. |
Similar potential, but design may allow for more efficient natural lighting and ventilation across the wide area. |
Technical Specifications & Standards
Our buildings are designed and manufactured to meet international standards for safety and performance.
|
Component |
Specification / Options |
|
Primary Frame |
Material: High-tensile steel (Q345B equivalent to ASTM A572 Gr.50). Connection: High-strength bolts (10.9 Grade) or welded connections as per design. |
|
Secondary Members |
Purlins & Girts: Cold-formed C/Z sections made from galvanized steel. |
|
Span Configuration |
Typical Double-Span Range: Total width from 30m to 60m+ (e.g., 2x15m, 2x18m, 2x24m spans). Clear height: 6m to 12m+ at eave. Length: Customizable, typically in 6m or 7.5m bays. |
|
Roof & Wall System |
Panels: 0.4mm-0.7mm thick galvanized/aluzinc steel sheets with PVDF or HDP paint finish. Insulation: Optional 50mm-100mm thick rock wool or polyurethane sandwich panels. |
|
Design Loads |
Wind Load: Designed per local code (e.g., up to 150 km/h wind speed). Snow Load: Customized per location (e.g., 0.5 kN/m² to 1.0 kN/m²). Live Load: As required for roof maintenance and equipment. |
|
Surface Treatment |
Steel Members: Hot-dip galvanized (≥275g/㎡) or primed & painted for superior corrosion protection. |
|
Foundation |
Design drawings provided for anchor bolts and base plates. Client or local contractor typically handles concrete foundation work. |
Applications
Our buildings are the backbone of modern industry, suitable for a wide range of sectors:
● Manufacturing & Assembly Plants: Automotive parts, machinery, electronics, furniture.
● Heavy Industrial Workshops: For fabrication, welding, machining, and equipment repair.
● Warehousing & Distribution Centers: For bulk storage, cross-docking, and logistics operations.
● Aviation & Automotive: Aircraft hangars, bus/truck maintenance facilities, vehicle showrooms.
● Agricultural Industrial: Machinery storage, processing plants, packing facilities.
● Recycling & Waste Management: Sorting plants, recycling centers.
Our Service Process: From Concept to Completion
● Consultation & Requirements Gathering: We discuss your project needs, location, budget, and specific functional requirements.
● Preliminary Design & Quotation: Our engineering team provides layout drawings, 3D renderings, and a detailed quotation within 5-7 working days.
● Design Finalization & Contract: We refine the design based on your feedback, finalize all specifications, and sign the contract.
● Factory Fabrication & QC: All components are precision-cut, welded, drilled, and painted in our automated facility under strict quality control.
● Packaging & Global Shipping: Components are clearly marked, packaged for export, and shipped via FOB/CIF terms with all necessary documentation.
● On-site Guidance & Support: We provide comprehensive erection drawings, manuals, and can offer technical supervision or remote support during construction.
Request Your Custom Factory Building Quote Today
Take the first step towards a more efficient and productive industrial facility. Contact our engineering team for a free consultation and preliminary design.
To help us prepare the best proposal, please provide:
1.Intended use of the building and location (country/city)?
2.Desired approximate dimensions (total width, length, eave height)?
3.Any special requirements (cranes, insulation, door types)?
Build Smarter. Build Stronger. Build with Steel.
