Steel Structure Chimney - High - Quality, Durable & Customizable Industrial Solution
As a core component of modern industrial infrastructure, our steel structure chimney is engineered to meet the strictest industry standards. It combines high strength, corrosion resistance, and easy installation. Suitable for various industrial scenarios, it provides reliable exhaust gas discharge solutions while complying with environmental protection requirements.
Below is a detailed introduction to our product, including features, advantages, specifications, applications, and customization services.
Product Features
High-Strength Structural Design
Adopts high-strength structural steel (Q235B, Q355B, Q355E, etc.) as the main material, with truss or space lattice design to achieve light weight and high stability. The overall structure is firm and can withstand strong wind, earthquake, and other harsh natural conditions, complying with relevant national and international standards such as EN 13084 / EN 1993 - 3 - 2 and Chinese national standard 08SG213-1.
Excellent Corrosion Resistance
Surface treatment adopts hot-dip galvanizing + epoxy zinc-rich primer + polyurethane topcoat, and welds are protected with special weather-resistant electrodes and zinc-aluminum coating to avoid local corrosion. Inner cylinder can be made of stainless steel (SUS304, 316L), FRP, or titanium-steel composite plate according to flue gas characteristics, effectively resisting acid, alkali, salt fog, and high-temperature corrosion.
Modular Prefabrication
All components are prefabricated in the factory with CNC assembly line and laser processing technology, using Daheng software for lofting to ensure high precision. The modular design allows on-site hoisting and splicing, greatly reducing on-site construction time and labor costs.
Integrated Functional Design
Equipped with full-steel anti-slip inspection platform and ladder for easy daily maintenance and inspection. The outer cylinder is covered with rock wool or aluminum silicate insulation layer, with galvanized steel plate protective shell outside to achieve good thermal insulation effect, prevent wall condensation, and stabilize flue gas flow rate and temperature.
Environmentally Friendly & Recyclable
The whole steel structure can be 99% recycled after scrapping, conforming to the green manufacturing trend, and reducing environmental pollution. The streamlined design enhances thermal buoyancy, promotes high-altitude diffusion of flue gas, and reduces ground pollutant concentration.
Product Advantages
Light Weight & Low Foundation Load
Compared with concrete chimneys, the self-weight of steel structure chimney is reduced by 30%-50%, which greatly reduces the requirements for foundation bearing capacity, saves foundation construction costs, and is especially suitable for soft soil foundations and complex terrain areas.
Short Construction Period
Factory prefabrication and on-site modular assembly can shorten the construction period by more than 40% compared with traditional concrete chimneys. For example, the production and installation period of a 100-meter chimney does not exceed 3 months, helping customers put into production quickly.
Strong Adaptability
It can be flexibly designed and installed according to different application scenarios, such as industrial plants, power stations, chemical parks, offshore platforms, etc. It is suitable for seismic fortification intensity ≤9 degrees, flue gas temperature -30℃ ~ +600℃ (special materials can reach 800℃), and can adapt to high altitude, high salt fog and other harsh environments.
Low Maintenance Cost
The modular design supports local replacement of damaged components, avoiding overall demolition and reconstruction. With excellent corrosion resistance, the service life can reach 30-50 years under regular maintenance, and the maintenance frequency is low, reducing long-term use costs.
Compliance with Environmental Standards
Strictly in line with international and local environmental protection regulations, it can effectively discharge industrial waste gas, flue gas, and other pollutants, and can be integrated with SCR denitration system to meet higher environmental protection requirements, such as waste incineration plants and chemical enterprises.
One-Stop Service Guarantee
Provide one-stop service from scheme design, stress calculation, production and manufacturing, installation guidance to after-sales maintenance, with free design service and national installation support, and lifelong quality assurance to solve customers' worries comprehensively.
Customization Services
We understand that different projects have different requirements for steel structure chimneys. Based on years of industry experience and advanced production technology, we provide personalized customization services to meet your specific needs. Our customization scope includes:
Structural Customization

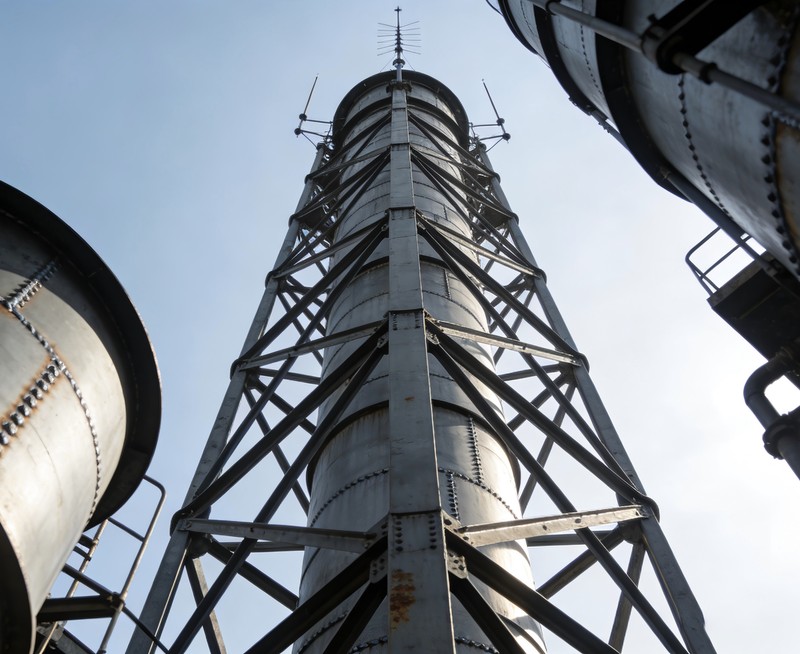

According to your project site, height requirements, and flue gas discharge volume, customize the structural type (self-supporting, tower type, cluster type, sleeve type), design the truss structure and connection mode, and optimize the structure through Tekla 3D modeling to ensure stability and safety.
Material Customization
Select the most suitable main material (Q235B, Q355B, stainless steel, FRP, etc.) and anti-corrosion treatment scheme according to the flue gas temperature, corrosion level, and environmental conditions (such as salt fog, high altitude) of your project to ensure the service life of the chimney.
Specification Customization
Customize the height (20m-300m), diameter (0.8m-8m), and wall thickness of the chimney according to the actual exhaust gas discharge needs, and support multi-tube parallel design to meet the centralized discharge requirements of multiple devices.
Functional Customization
According to your maintenance needs, add inspection platforms, ladders, lightning protection devices, and intelligent monitoring systems (such as online displacement monitoring devices) to realize real-time monitoring of chimney operation status and improve safety.
Process Customization
According to the project schedule and installation conditions, optimize the prefabrication process and on-site installation plan, adopt special tools and construction methods to ensure the construction progress and quality, and save construction costs.
One-Stop Customization Service
Provide free professional design scheme, conduct on-site survey, formulate personalized customization plan, and provide full-process tracking service from production, transportation to installation and after-sales, ensuring that the customized products fully meet your project needs.
Specifications & Parameters
|
Parameter Category |
Specification Range |
Remarks |
|
Chimney Height |
20m - 300m |
Customizable according to customer needs, including self-supporting type (30m-60m) and tower type (above 60m) |
|
Chimney Diameter |
0.8m - 8m (single cylinder) |
Multi-tube parallel design is available, reducing floor space |
|
Main Material |
Q235B, Q355B, Q355E, SUS304, 316L, FRP, titanium-steel composite plate |
Inner cylinder material is selected according to flue gas corrosion level and temperature |
|
Temperature Resistance |
-30℃ ~ +600℃ (special materials up to 800℃) |
Suitable for different flue gas temperature scenarios, such as power plants, chemical plants |
|
Seismic Fortification Intensity |
≤9 degrees |
Complies with Chinese national standard 08SG213-1, suitable for most regions in China |
|
Corrosion Resistance Level |
Micro-corrosion, weak corrosion, medium corrosion, strong corrosion |
Surface treatment and inner cylinder material are matched according to corrosion level |
|
Structural Type |
Self-supporting type, tower type, cluster type, sleeve type |
Customizable according to application scenarios and height requirements |
|
Service Life |
30-50 years (under regular maintenance) |
3-year repainting of anti-corrosion layer is recommended in coastal/chemical areas |
Application Scope
Our steel structure chimneys are widely used in various industrial fields that require exhaust gas discharge, with mature application cases in domestic and foreign projects. The main application scenarios include:
Power Industry: Thermal power plants, hydropower plants, waste incineration power plants, etc. It is suitable for high-temperature and high-corrosion flue gas discharge, such as the 180-meter three-tube self-supporting steel chimney of Shandong Iron and Steel Rizhao Power Plant and the 240-meter double-tube self-supporting steel chimney of Huaneng Jinling Power Plant.
Chemical Industry: Chemical parks, petrochemical enterprises, pharmaceutical factories, etc. It is used to discharge sulfur-containing, fluorine-containing and other corrosive waste gases, with inner cylinder adopting 316L stainless steel + PTFE lining coating.
Metallurgical Industry: Iron and steel plants, non-ferrous metal smelting plants, etc. It is suitable for high-temperature flue gas discharge in smelting process, and the outer cylinder can adopt weathering steel to enhance corrosion resistance.
Environmental Protection Industry: Waste treatment plants, sewage treatment plants, etc. It is integrated with environmental protection equipment to realize harmless treatment and discharge of waste gas.
Special Scenarios: Offshore platforms (anti-salt fog design, using 2205 duplex stainless steel + sacrificial anode protection), high-altitude areas, soft soil foundation areas, etc., which can adapt to complex environmental conditions.
Why Choose Us?
With decades of experience in the steel structure chimney industry, we have implemented more than 3,500 steel chimney projects worldwide, and have established long-term cooperative partnerships with many customers. We have advanced production equipment, professional design and construction teams, and strict quality control system, which can provide you with high-quality, reliable and cost-effective steel structure chimney solutions. Whether it is standard products or customized needs, we are committed to creating maximum value for you.
Contact us now to get your personalized steel structure chimney solution!
