Our Steel Structure Villa is a cutting-edge residential solution built around a robust light steel framing system. Engineered for modern living, it combines exceptional strength, architectural flexibility, and eco-friendly performance. Perfect for permanent residences, vacation homes, or high-end residential projects, our steel villas deliver superior quality, faster occupancy, and long-term value compared to traditional brick-concrete buildings.
Product Features

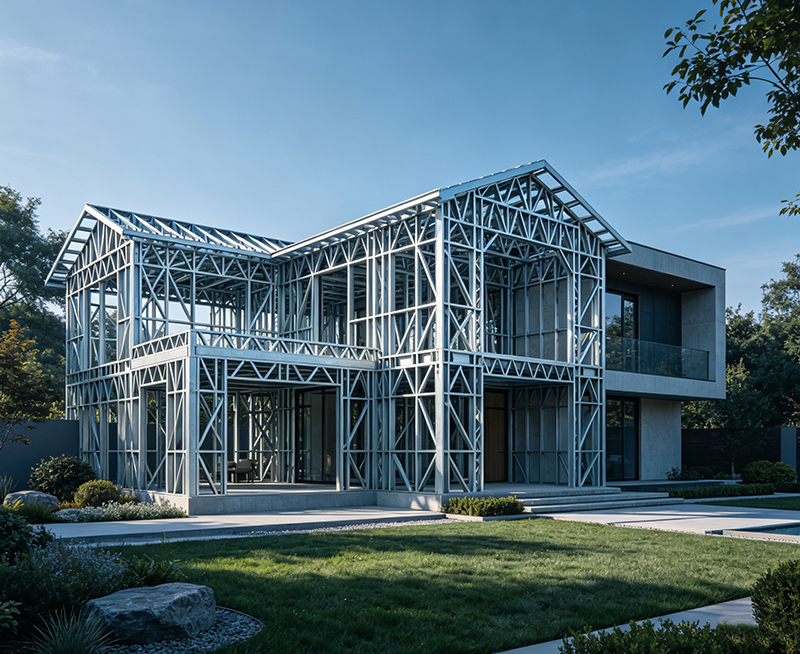

High-Strength Light Steel Frame
Main structure: G550 high-strength cold-formed steel (0.6–1.2mm thick)
Hot-dip galvanized / Al-Zn alloy coated (AZ150/Z275) for maximum corrosion resistance
Lightweight (25–35kg/㎡): 1/5 the weight of brick-concrete, but higher structural strength
Seismic & Wind Resistant
Earthquake resistance: Up to Grade 9 (0.4g acceleration)
Wind resistance: Withstands 12-grade typhoons (50–60m/s)
Integral structural integrity via bolted connections & ‘skin-effect’ system
Fire & Pest Proof
Non-combustible steel structure; fire-resistant up to 1–3 hours with proper cladding
100% termite & insect proof
Mold & moisture resistant; no rotting or warping
Energy Efficient & Comfortable
Advanced thermal insulation: 3–5x better than brick walls
Wall insulation: 75–150mm rock wool/EPS/PU
Sound insulation: Exterior wall ≥60dB; Interior wall ≥45dB
Air-tight construction reduces energy costs by 30–50%
Eco-Friendly & Sustainable
95% of steel materials recyclable
70% less construction waste than traditional builds
No formaldehyde; low VOC materials
Sustainable green building certification compliant
Core Advantages
Superior Durability
Design lifespan: 70–100 years
Anti-corrosion coating prevents rust for decades
No cracking, settling, or material degradation
Cost-Effective Total Solution
Lower foundation costs (lighter structure)
60–70% labor cost savings
Faster occupancy = quicker return on investment
Minimal long-term maintenance
Ultimate Design Flexibility
Large open spans (6–12m) without load-bearing columns
Flexible interior layouts; customizable room sizes & styles
Supports modern, contemporary, European, American, or traditional exteriors
Thinner walls (150–200mm) increase usable space by ~5–8%
All-Weather Applicability
Suitable for extreme climates: cold, hot, coastal, high humidity
Resists heavy snow loads (up to 2.9KN/㎡)
Ideal for earthquake & typhoon-prone regions
Our Customization Services
Architectural Design Customization
Custom floor plans (bedrooms, bathrooms, living areas, garages)
Personalized exterior styles: modern, minimalist, European, American, rustic
Custom sizes, layouts, and special features (basements, attics, pools, terraces)
Material & Finish Customization
Choice of exterior cladding: metal siding, brick, wood, stone, stucco
Interior finishes: flooring, tiles, paint, wallpaper, ceilings
High-end fixtures: kitchens, bathrooms, smart home systems
Functional Customization
Smart home integration: automation, security, energy management
Eco-upgrades: solar panels, rainwater harvesting, heat recovery systems
Accessibility: barrier-free design, elevators, ramps
Special rooms: home theaters, gyms, offices, wine cellars
Turnkey Solution
One-stop service: design → manufacturing → transportation → installation → after-sales
On-site installation guidance or full construction team
Complete interior & exterior decoration packages
Standard Specifications
|
Item |
Details |
|
Structure |
Light gauge steel frame (G550, AZ150/Z275, 0.6–1.2mm) |
|
Stories |
1–3 floors (max height 12m) |
|
Area Range |
100–1,000+ sqm (customizable) |
|
Exterior Wall |
Steel frame + glass wool/rock wool + cement board + exterior finish |
|
Interior Wall |
Steel keel + gypsum board/calcium silicate board + decoration |
|
Roof |
Steel truss + insulation + waterproof membrane + asphalt/metal/ceramic tiles |
|
Floor |
Light steel floor joists + floor deck + laminate/ceramic tile |
|
Doors & Windows |
Aluminum alloy / UPVC (double-glazed optional) |
|
Thermal Insulation |
75–150mm rock wool/EPS/PU (R-value 3.0–5.0) |
|
Sound Insulation |
Exterior: 45–60dB; Interior: 40–45dB |
|
Seismic Grade |
Grade 9 (0.4g) |
|
Wind Load |
0.85–1.2kN/㎡ (12-grade typhoon) |
|
Fire Rating |
1–3 hours (with fireproof cladding) |
|
Lifespan |
70–100 years |
|
Construction Time |
30–60 days (for 200㎡ villa) |
Why Choose Our Steel Structure Villa?
We deliver premium steel structure villas engineered for safety, comfort, and sustainability. Our factory-direct production ensures strict quality control, cost efficiency, and fast delivery. Backed by professional design and installation teams, we create custom luxury steel frame homes that exceed international standards (AISI, AS/NZS, GB). Build smarter, live better—choose our steel villa for your dream home.
Application Scope
Permanent Family Residences (urban/suburban/rural)
Luxury Vacation Homes & Villas (resorts, coastal, mountain areas)
High-End Residential Developments
Boutique Hotels & Guesthouses
Disaster-Resistant Housing (earthquake/typhoon zones)
Custom Luxury Homes (unique architectural designs)
Single/Double/Triple-Storey Villas
