We provide deep customization and professional technical services covering the entire railway bridge lifecycle:

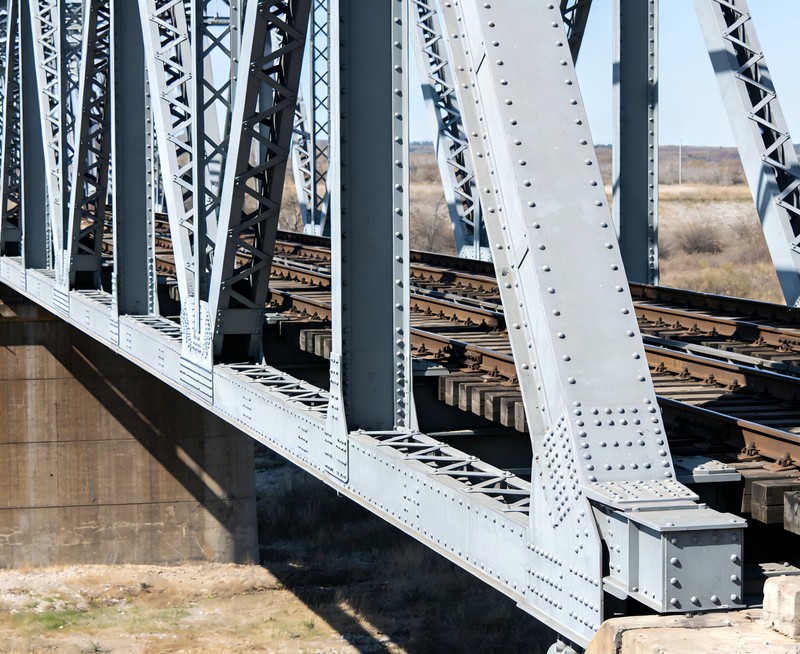

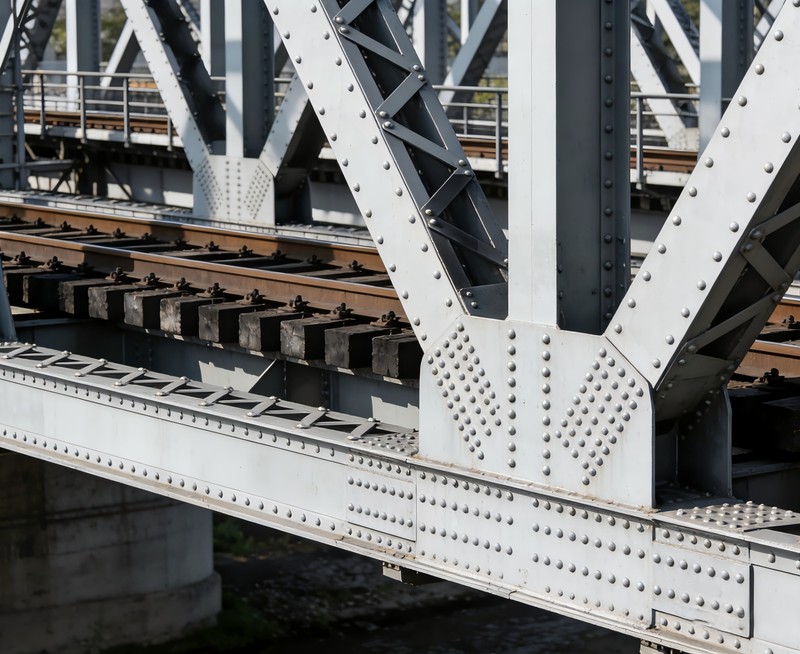

We specialize in the design, fabrication, and installation of high-reliability, low-maintenance prefabricated steel railway bridges, providing superior solutions for crossing rivers, gorges, roads, and existing lines for global high-speed rail, heavy-haul freight, urban transit, and industrial sidings. Compared to highway bridges, railway bridges demand stricter requirements for dynamic response, fatigue life, and long-term stiffness. Our all-steel solutions are engineered precisely for these demands, ensuring safe, smooth, and efficient train operation.
Features & Core Advantages
Superior Dynamic Performance & Ride Comfort
Through refined FEA and vehicle-bridge coupling vibration simulation, we optimize dynamic characteristics, ensuring vertical/lateral accelerations and displacements under high-speed trains are strictly within limits, guaranteeing smooth, safe operation and passenger comfort.
Unmatched Fatigue Durability
Railway bridges endure hundreds of millions of stress cycles. We employ fatigue-resistant detailing (e.g., grinding weld toes, using drilled holes) and conduct fatigue life assessment per stringent international codes, significantly extending service life under cyclic loading and reducing lifecycle maintenance costs.
Rapid Modular Construction, Minimizing Rail Disruption
Components are precision-prefabricated in the factory. On-site large modular lifting and rapid connection (e.g., high-strength bolts) are used. For existing line upgrades or girder replacement, we provide "possession window" construction plans, compressing single line blockages to hours, minimizing operational impact.
Highly Integrated & Adaptive Design
Our designs pre-integrate foundations for catenary masts, cable ducts, noise barriers, and monitoring system mounts. They easily adapt to electrified/non-electrified, ballasted/ballastless tracks and allow ample margin for future speed increase or heavier axle loads.
Whole-Life Digital Management & Smart Monitoring
We provide a digital twin (BIM) synchronized with the physical bridge for construction and O&M. Long-term health monitoring systems can be integrated for real-time stress, deformation, vibration, and corrosion data, enabling predictive maintenance and proactive management.
Our Customization & Service Scope
We provide deep customization and professional technical services covering the entire railway bridge lifecycle:
Specialized Design per Railway Codes
Perform load combination, dynamic analysis, fatigue check, and limit state design per local codes (e.g., Chinese TB, European EN, US AREMA, UIC). Deliver integrated designs meeting interface requirements for permanent way, electrification, and signaling systems.
Complex Scenario & Special Structure Design
Long-span railway bridges (steel girders for cable-stayed/arch bridges), railway truss bridges, and combined highway-railway bridges.
Steel design and construction methodology for girder replacement, jacking, and lateral launching in existing line capacity expansion projects.
Seismic isolation and special foundation connection design for high-seismic zones, soft soil, and mining subsidence areas.
Fabrication & Quality Control
Utilize CNC cutting, robotic welding, and full-scale pre-assembly in EN 1090/ISO 3834 certified workshops. Perform 100% Ultrasonic Testing (UT) on primary welds and Magnetic Particle Testing (MT) on fatigue-critical details.
Fabricate weathering steel (unpainted) bridges or apply C5-M grade heavy-duty coating systems for harsh environments.
Global Project Delivery & Support
Offer EPC or DFM cooperation models. Assign project managers experienced in international railway projects to coordinate cross-border logistics, customs clearance, and on-site erection guidance.
Core Specifications & Technical Parameters
|
Parameter |
Specification Range / Standards |
Railway-Specific Notes & Considerations |
|
Design Load |
UIC 71, Cooper E80, AREMA, or Client-Specific |
Railway live loads have significant dynamic effects, requiring calculation with dynamic amplification factors, consideration of multi-track loading, and centrifugal force (for curved bridges). |
|
Design Span |
30m - 300m+ (Typical economical span 40-120m) |
Long spans reduce piers in water, optimizing navigation and flood control. Simply-supported, continuous girders, and trusses are common forms. |
|
Structural Type |
Plate Girder, Box Girder, Through/Deck Truss |
Box girders offer high torsional stiffness for curved bridges and eccentric loading; Trusses are suitable for very long spans and facilitate inspection. |
|
Steel Grade |
EN 10025 S355J2, S460NL; ASTM A709 Gr.50W, Gr.HPS 70W; Q345qE, Q420qE |
Must use bridge-quality structural steel, guaranteeing low-temperature impact toughness at -20°C or -40°C, and controlled carbon equivalent for weldability. |
|
Deck System |
Open Deck (Ballast Trough), Ballasted Deck, Integrated Ballastless Track |
Open decks require integrated guard rail foundations; Ballasted decks require deck stiffness control; Ballastless tracks demand extremely high deck surface flatness. |
|
Stiffness Control |
Vertical Deflection ≤ L/800 ~ L/1000; Lateral Stiffness per Code |
Strict deformation control is core to railway bridge design, directly affecting running safety and ride comfort, requiring vehicle-bridge coupling dynamic analysis. |
|
Fatigue Design |
Per EN 1993-1-9, AREMA Ch.15 for detail category design |
Subject to high-cycle loading, necessitating fatigue-resistant detailing at welds, bolted connections, and cross-girder/stringer connections. |
|
Design Life |
≥ 100 years |
Designed based on whole-life cycle cost, considering fatigue damage accumulation and corrosion allowance, targeting minimal maintenance cost. |
Application Scenarios
High-Speed Railway Bridges (Passenger Dedicated Lines)
Heavy Haul Railway Bridges (Freight Lines)
Urban Transit Viaducts (Metro, Light Rail)
Overpass Bridges within Railway Yards & Hubs
Industrial Sidings & Mining Railway Bridges
Strengthening & Replacement of Existing Railway Bridges
