We provide end-to-end, deep customization services:
We specialize in the design, fabrication, and installation of high-performance, full-range steel communication towers, providing reliable, economical, and aesthetically pleasing support solutions for global mobile networks (2G/3G/4G/5G), microwave transmission, broadcast television, public safety, and IoT infrastructure. Leveraging modular design and advanced manufacturing techniques, our towers meet strict structural safety and electromagnetic performance requirements while enabling rapid deployment, easy expansion, and long-term low-maintenance operation. They serve as the core physical enablers for a seamlessly connected world.
Features & Core Advantages
Optimized Structural Design & Rapid Deployment
Parametric modeling and FEA enable topology optimization for minimal material use. Factory-prefabricated, numbered components allow bolted field assembly, slashing installation time (monopoles often erected in 1-2 days), helping operators capture market opportunities faster.
Superior Wind/Seismic Resistance & Dynamic Performance
Rigorous analysis of wind-induced responses (along-wind, across-wind, torsional) and seismic loads for tall, flexible structures. Vortex shedding and wind-induced acceleration are mitigated via TMDs or shape optimization, ensuring stability and antenna pointing accuracy.
High Modularity & Sharing/Expansion Capability
Designed with ample load margin and platform space for multi-operator sharing (MOCN). Modularity allows future platform addition, height extension, or capacity upgrade, easily adapting to 5G densification and new technologies, protecting initial investment.
Long-Term Corrosion Protection & Low Lifecycle Maintenance
Standard hot-dip galvanizing offers 30+ years of protection. Enhanced systems for harsh environments. Design ensures ventilation and drainage to prevent corrosion. These ensure minimal lifecycle maintenance and reduced OPEX.
Flexible Aesthetic Treatment & Community Integration
Various stealth solutions like faux tree towers, flagpoles, or building-integrated designs reduce visual impact, ease municipal approval, and blend with surroundings. Monopoles can be polyester or PVDF coated in custom colors.
Our Customization & Service Scope
We provide end-to-end, deep customization services:
Integrated Site Solution
Beyond the tower, we supply antenna brackets, cable trays, lightning protection, lighting, and even simple shelters/fencing for a "ready-to-use" site.
Special Function & Smart Tower Customization
Sensor-Ready Towers: Pre-installed conduits and power for weather sensors, Structural Health Monitoring (SHM), cameras.
Rapid Deployment Towers: Portable, quick-install solutions for disaster recovery or temporary events.
Sharing-Optimized Towers: Designed for tower companies, maximizing platform utility and load capacity.
Complete Documentation & Compliance Support
Deliver structural calculations, fabrication drawings, assembly manuals, loading tables, mill certificates. Assist with local planning permits, OBL applications, EMF assessments.
Global Logistics & Installation Support
Provide expert packing and shipping for long components. Offer on-site erection supervision or turnkey project delivery.
Core Specifications & Technical Parameters
|
Parameter |
Specification Range / Standards |
Technical Notes & Telecom-Specific Considerations |
|
Design Codes |
TIA-222 Rev. H, EN 1993, AS/NZS 1170, Local Codes |
Strictly adhere to industry standards, focusing on combined effects of wind, ice, seismic, and antenna loads. |
|
Structure Type |

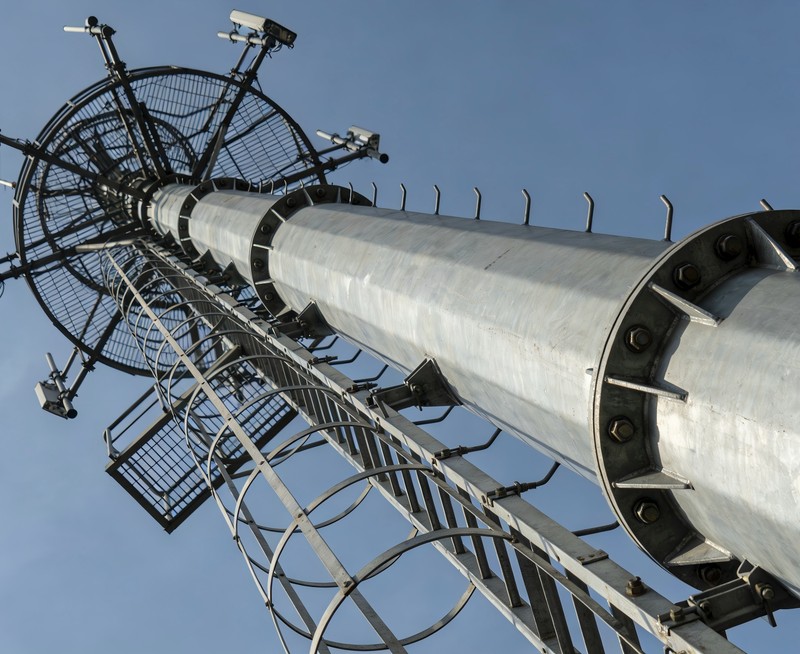

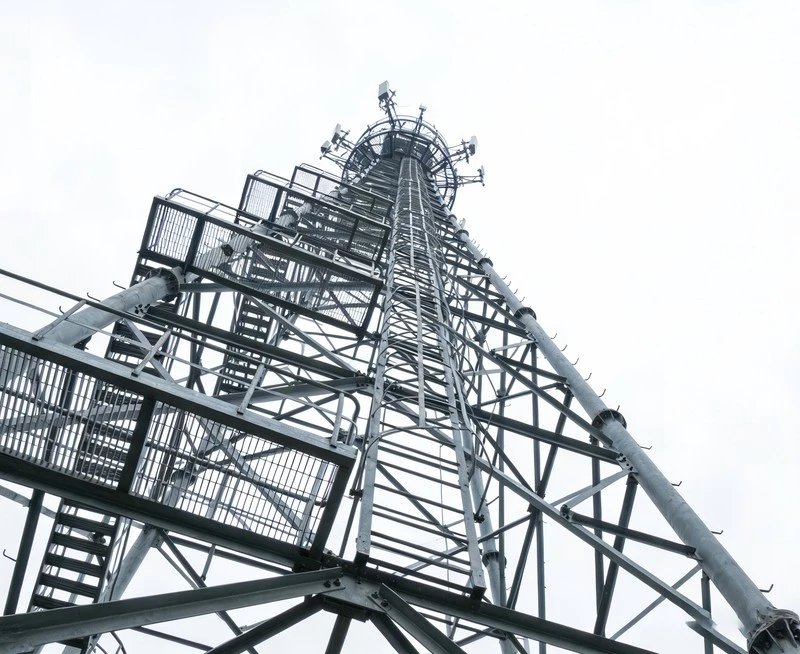

Lattice Tower, Monopole (Polygonal/Tapered), Guyed Mast, Stealth Tower, Rooftop Tower |
Lattice towers for high capacity/sharing; Monopoles for small footprint & quick install; Guyed masts for cost-effectiveness; Stealth towers disguised as trees/flagpoles. |
|
Tower Height |
15m - 80m+ (Self-supporting); Guyed masts up to 150m+ |
Height determined by coverage radius, antenna height requirements, terrain, and obstructions. Precise wind-induced vibration analysis ensured. |
|
Platforms & Brackets |
Single/Multiple platforms, round/square; Adjustable brackets |
Fully customizable platform number, spacing, capacity (typically ≥500kg/platform). Brackets allow flexible downtilt and azimuth adjustment. |
|
Design Loads |
Wind (50/100-yr return), Ice, Equipment, Erection loads |
Fully customizable platform number, spacing, capacity (typically ≥500kg/platform). Brackets allow flexible downtilt and azimuth adjustment. |
|
Main Steel |
Q235B, Q345B, Q420B; ASTM A36, A572; EN 10025 S355 |
Selected based on height and loads. Monopoles use high-strength steel plates with aesthetic welds. |
|
Hot-Dip Galvanizing (Avg. zinc ≥86μm), Thermal Spray+Painting, Full Painting |
Hot-Dip Galvanizing (Avg. zinc ≥86μm), Thermal Spray+Painting, Full Painting |
HDG is the most common and economical solution. "Thermal spray + paint" for coastal/high-pollution areas. |
|
Lightning Protection |
Independent air terminal or integrated design, Ground resistance ≤10Ω (typical) |
Complete direct strike protection system including air terminal, down conductor, and grounding to protect costly equipment. |
|
Foundation Type |
Spread footing, Pile foundation, Rock anchor foundation |
Complete direct strike protection system including air terminal, down conductor, and grounding to protect costly equipment. |
|
Ladder & Safety |
Internal/External ladder per OSHA/EN; Rest platforms, Fall arrest system |
Ensures technician safety. Can integrate climbing safety rails or provide anchor points for harnesses. |
Primary Applications
Support structures for 2G/3G/4G/5G macro cells, small cells, and mmWave sites.
Private Networks & Emergency Communications
Communication for police, fire, railway, utilities; rapid-deployment towers for emergency vehicles.
Broadcast TV & Microwave Transmission
TV/FM broadcast towers, microwave relay towers.
IoT & Smart City Infrastructure
Integrated poles supporting sensors/devices for environmental monitoring, traffic management, public Wi-Fi, UAV docks.
In-Building & Rooftop Solutions
Rooftop extensions, wall mounts, and support structures for Indoor DAS.
