Custom Prefab Steel Structure Car 4S Dealership Building - Wide Span Showroom & Service Center
Professional custom prefab steel structure car 4S dealership buildings. One-stop solution from design to installation. Large clear span, fast construction, compliant with BMW, Mercedes, Audi standards. CE & ISO certified. Global shipping

Features

Large Clear Span: Up to 40-60m column-free space for unobstructed vehicle display.

Fast Modular Construction: Prefabricated components reduce construction time by 40%.

Brandable Facade: Support for glass curtain walls, aluminum panels, and metal composite panels.

Flexible Layout: Integrated design for showroom, workshop, office, and customer lounge.

Energy Efficient: Insulated roof and wall systems to reduce operational costs.



Advantages



Cost-Effective: Lightweight structure reduces foundation costs and total investment.

High Durability: Q345B high-strength steel with hot-dip galvanization, 50-year design life.

Easily Expandable: Modular design allows for future expansion (e.g., used car showroom).

Seismic & Wind Resistant: Robust structure suitable for various geographic conditions.



Types/Applications



Full 4S Dealership: Integration of Sale, Service, Spareparts, and Survey functions.

Service Center: Stand-alone after-sales workshop, often with mezzanine offices.

Used Car Center: Large, cost-effective space for mass vehicle display.



Customization Services



Free Layout Design: Preliminary layout based on your land size and functional needs.

BIM Modeling: Structural detailing with Tekla/3D modeling to prevent clashes.

Color Matching: Exterior color matching for brand CI (e.g., BMW blue, Audi black).

Full Certification: Support with CE (EN 1090), ISO certificates for local approval.

Specifications

Parameter

Specification

Main Frame

Q235B or Q345B Welded H-beam

Span

15m - 60m (Customizable)

Eave Height

4m - 12m

Roof System

Color steel sandwich panel/Standing seam roof

Wall System

Color steel panel, Glass curtain wall, MCM panel

Design Life

50 years

Fire Rating

1-2 hours fire resistance

Seismic

Fortification intensity 8 or below



4S Car Dealership Building Layout and Functional Areas

A 4S dealership integrates automobile sales, spare parts, service and customer-related functions. We configure the steel structure according to the vehicle display capacity, service bay requirements, office layout and available site dimensions.

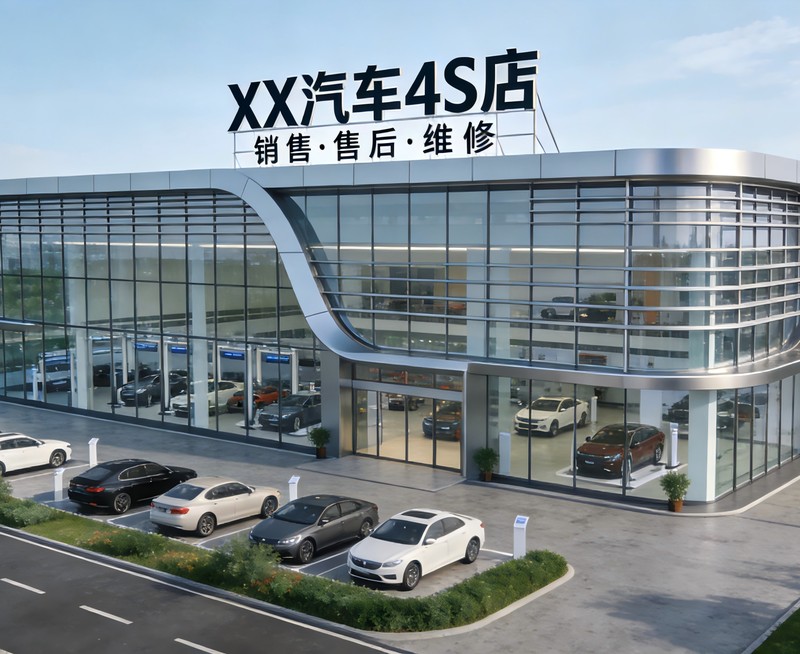

Vehicle Showroom and Display Area

Our steel structure car showrooms are designed with large clear spans to reduce intermediate columns and provide flexible vehicle display arrangements. The structural grid is coordinated with showroom entrances, glass facades, vehicle circulation and interior display requirements.

For projects with panoramic glazing, we review curtain wall connection positions, supporting members, facade height and roof geometry with the architectural drawings. The structural layout can also accommodate designated areas for reception, customer seating and brand display elements.

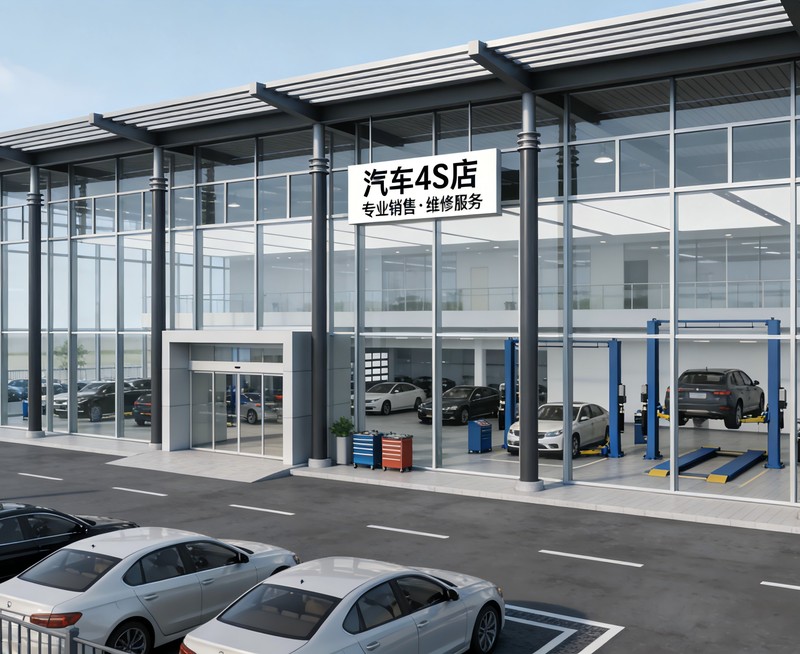

Vehicle Service and Repair Workshop

The vehicle service area requires suitable clearance for repair equipment, lifting systems, vehicle circulation and workshop doors. We coordinate column spacing, clear height, roof structure and equipment interfaces with the proposed maintenance bay layout.

Workshops may include inspection bays, mechanical repair areas, tire service areas and separate technical rooms. Vehicle lifts, service pits, exhaust extraction and other equipment require their own installation details and load verification.

Spare Parts Storage

Spare parts areas can be incorporated within the main dealership building or configured as adjoining steel structure storage spaces. We review shelving locations, storage loading, access doors and circulation routes when establishing the building layout.

Where a mezzanine or upper-level storage area is required, the floor structure is designed according to the specified live loads, shelving arrangement and access requirements.

Offices and Customer Reception

Jin'an Group supports structural layouts that incorporate customer lounges, sales offices, meeting rooms and administrative areas. These spaces may be arranged within single-storey buildings or integrated with mezzanine and multi-level floor structures where the project design requires them.

Internal partitions, floor loads, stair openings and mechanical service routes must be coordinated with the architectural and structural design.

Vehicle Delivery and Covered Entrance Areas

Steel canopies, covered vehicle delivery areas and entrance structures can be considered within the dealership design. We review canopy connections, roof drainage, facade compatibility and vehicle access dimensions according to the approved building arrangement.



Steel Frame and Building Envelope Configurations

Jin'an Group coordinates the steel structure, roof system, wall enclosure and facade connection requirements to support the architectural and operational needs of a car dealership.

Large-Span Steel Frames

Our steel structure car dealership buildings use fabricated steel columns and beams to provide the required interior clearances. The frame arrangement is selected according to showroom space, workshop layout, local design loads and building geometry.

Large clear spans can reduce internal columns within the vehicle display area. However, increasing the span affects steel member sizes, structural deflection and overall project cost. We assess these factors during structural design.

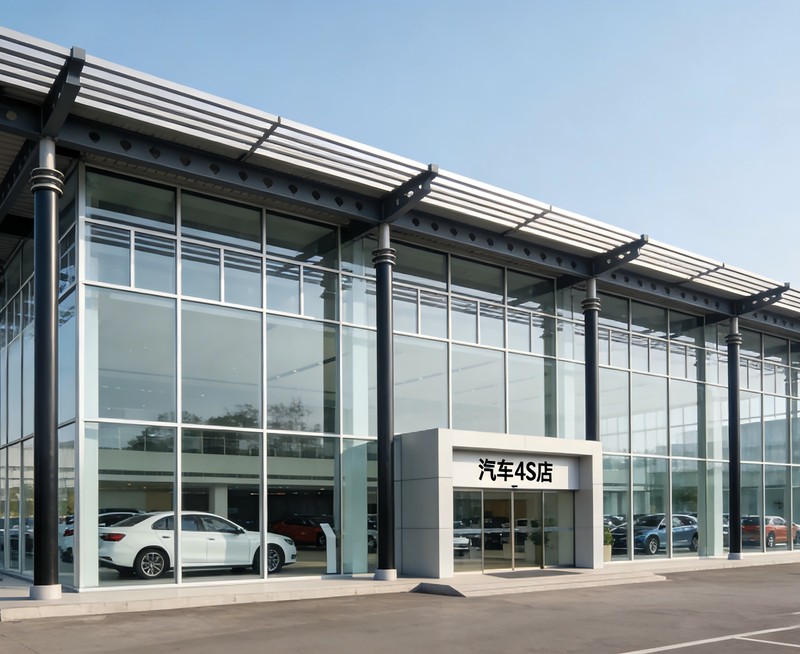

Glass Curtain Wall and Architectural Facade

Automotive showrooms often require extensive glazing and a distinct exterior appearance. We coordinate the main frame and facade support positions with glass curtain wall layouts, entrance openings and cladding interfaces.

Our building configurations include glass curtain walls, color steel panels and metal composite panels. The facade system can be developed around project-specific architectural drawings and brand color requirements.

Roof and Insulation Systems

Available roofing configurations include color steel sandwich panels and standing seam roof systems. Roof slope, thermal insulation, waterproofing, drainage and maintenance access are considered according to the building location and design requirements.

Insulation requirements can vary between the climate-controlled showroom, customer areas and the service workshop.

Workshop Doors and Vehicle Access

Service workshops require correctly positioned entrances for passenger vehicles, maintenance equipment and internal circulation. We coordinate steel frame openings and secondary framing with the specified industrial doors, shutters and vehicle access routes.

Door width and clear height must account for the vehicle types and operating equipment used in the service center.

Mezzanine and Multi-Level Areas

Where additional office or storage floor space is required, Jin'an Group can review a mezzanine or multi-level structural arrangement. The design considers floor loading, stair access, structural connections and the required building functions.
