As a professional exporter of custom steel structure buildings, we are committed to providing high-quality, customizable large-span steel structure airport terminal solutions that meet international standards. Our products are widely used in global airport construction projects, covering large and medium-sized international airports, regional airports and general airports, with reliable quality, flexible customization and perfect after-sales service. The following is a detailed introduction to our large-span steel structure airport terminal, including definition, characteristics, advantages, specifications, customization content and scope, to help you fully understand our products and meet your global airport construction needs.

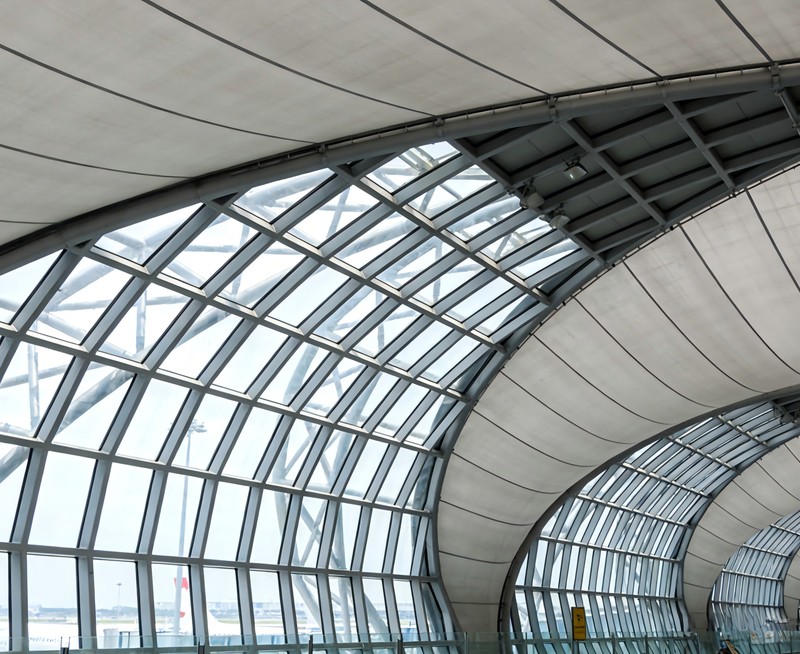

What is a Large-span Steel Structure Airport Terminal?
A large-span steel structure airport terminal is a core public transportation building that uses high-strength steel as the main load-bearing structure, with a span of more than 30 meters (the steel structure standard defines a span of more than 60 meters as a large-span structure). It integrates advanced steel structure design, modular prefabrication and intelligent construction technology, and the main components such as roof grid, steel frame, support column and curtain wall are prefabricated in the factory, then transported to the construction site for hoisting and assembly. As the core hub of airport operation, it undertakes the functions of passenger check-in, security inspection, waiting, boarding, luggage handling and logistics services, and can accommodate thousands to tens of thousands of passengers per hour. With the characteristics of large space, light weight, high strength, beautiful appearance and efficient construction, it has become the mainstream choice of modern airport terminal construction around the world, and is an important symbol of a city's internationalization level and transportation hub capacity. Our large-span steel structure airport terminals fully comply with international standards such as CE, ASTM, ISO, and can be customized according to the air traffic volume, geographical environment and local building codes of different countries and regions.
Product Characteristics
Super Large Span & Unobstructed Space
The span can reach 30-300 meters, and the roof adopts spatial structure forms such as grid structure, truss structure and cable dome structure, which can realize a large-area column-free space. It can flexibly layout check-in areas, security inspection channels, waiting halls and boarding gates, ensuring smooth passenger flow and unobstructed space, and fully meeting the functional needs of large passenger flow and efficient operation of the airport. The maximum span of some large-scale terminal roof structures can even reach more than 270 meters, realizing a seamless and open space experience.
Light Weight & High Structural Strength
The main structure is made of high-quality high-strength steel (Q355B, ASTM A36, etc.), which has excellent tensile and compressive strength. The weight of the steel structure is only 1/3-1/5 of that of the traditional reinforced concrete structure, which can effectively reduce the load of the foundation project, save the cost of foundation construction, and adapt to the complex geological conditions of airport construction sites. At the same time, it has strong wind resistance, seismic resistance and snow load resistance, and can adapt to various harsh natural environments such as coastal typhoons, plateau cold and earthquake-prone areas.
Flexible and Beautiful Appearance & Cultural Integration
The steel structure has strong plasticity, and can be designed into various shapes such as curved surface, streamline and special shape according to the urban cultural characteristics and architectural aesthetics, such as the "flying fish" shape and the shape simulating mountain ranges, which can not only meet the functional needs, but also become a landmark building of the city and the airport. The roof can be equipped with light-transmitting membrane materials or glass curtain walls to achieve good lighting effects, reduce energy consumption, and integrate the regional cultural connotation into the architectural design, showing the unique charm of the region.
High Prefabrication Degree & Efficient Construction
The main components (steel grid, steel columns, curtain walls, etc.) are prefabricated in the factory with standardized production, which ensures the precision and quality of the components. The on-site construction only needs hoisting and assembly, and advanced technologies such as hydraulic synchronous lifting and BIM digital pre-assembly are adopted to greatly reduce on-site wet work, shorten the construction period, and the construction efficiency is 50%-70% higher than that of traditional concrete terminals. It can realize rapid delivery and put into use earlier, reducing the impact on airport normal operation.
Green Environmental Protection & Energy Saving
Steel materials can be 100% recycled and reused, which conforms to the global low-carbon and environmental protection development trend. No a large amount of construction waste is generated during the construction process, which reduces environmental pollution. At the same time, the building adopts energy-saving design, such as light-transmitting roof, natural ventilation system, rainwater collection system and solar energy utilization, which can effectively reduce the later operation energy consumption. Some projects even use carbon fiber cables to further reduce energy consumption and realize green and sustainable development .
Intelligent & Multi-functional Integration
It can be integrated with intelligent airport systems, such as intelligent check-in, security inspection, luggage sorting, passenger flow monitoring and intelligent operation and maintenance systems, to improve the efficiency of airport operation and passenger travel experience. The internal space can be flexibly divided, which can not only meet the basic functions of passenger transportation, but also set up commercial areas, catering areas, VIP lounges and other supporting spaces to realize multi-functional integration and improve the comprehensive utilization rate of the space.
Product Advantages
Superior Safety Performance
Strictly in accordance with international building codes, aviation industry standards and seismic standards, the seismic grade can reach 8-9 degrees, and the wind resistance grade can reach 12 levels. It can effectively resist natural disasters such as earthquakes, strong winds, heavy snow and typhoons. The structure is stable and reliable, and the service life can reach 50-100 years. The fire rating reaches Grade A1, equipped with advanced fire protection systems (intelligent fire detection, fire-fighting robot, fire-fighting sprinkler system), which can effectively ensure the safety of passengers, staff and the terminal during use.
Cost-effective & Low Comprehensive Cost
Although the initial investment of steel structure is slightly higher, the prefabricated production reduces the on-site labor cost and construction period cost. The steel structure has low later maintenance cost, long service life and high recyclability, which can effectively reduce the comprehensive cost of the project. At the same time, the optimized structural design and new material application (such as carbon fiber cable) can reduce the steel consumption by 10%-15%, further saving the cost of materials.
Strong Customization & Wide Adaptability
We can customize the span, area, passenger flow capacity, appearance shape, interior layout and supporting facilities according to the customer's needs, airport scale, regional climate, geological conditions and local building standards. It can be adapted to different regions such as coastal areas (anti-corrosion design), plateau areas (anti-freezing design) and earthquake-prone areas, and meet the import requirements of various countries in the world. It can be designed according to the airport level (4E, 4F, etc.) to meet the functional needs of different types of airports.
Compliance with International Standards & Smooth Customs Clearance
All products are produced in accordance with international standards such as CE, ASTM, ISO and GB 50017-2017, and have passed relevant international certifications. The materials, structure and construction all meet the import standards and aviation industry norms of various countries, avoiding the risks of customs clearance and quality inspection. The deflection limit, load-bearing capacity and other indicators fully comply with international design specifications, ensuring the quality and safety of the terminal.
Perfect After-sales Service & Global Support
We provide one-stop service from design, production, transportation to installation. We have a professional technical team and after-sales team, which can provide on-site installation guidance, technical training and after-sales maintenance services globally. We respond to customer needs in a timely manner, and provide long-term technical support and maintenance services to ensure the smooth operation of the terminal and solve the worries of customers in the later stage.
Our Customization Content & Scope
We focus on providing one-stop customization services for large-span steel structure airport terminals, covering the entire process from design, production, transportation to installation, and comprehensively meeting the personalized needs of global customers. Combining with international standards, aviation industry norms and local building codes of various countries, we provide professional customization solutions to ensure that the products are compliant, practical, beautiful and energy-saving, and meet the functional needs of different types of airports.
01
Structural Design Customization
According to the customer's needs, airport scale, passenger flow capacity and regional conditions, customize the span, height, building area, roof structure form (grid, truss, cable dome, etc.). Combine the local climate, geological conditions and seismic standards to optimize the structural design, carry out mechanical simulation, deflection calculation and wind environment simulation, ensure the structural stability and safety, and provide professional 3D design drawings, renderings and structural calculation reports for customer confirmation. The steel consumption can be optimized and new materials such as carbon fiber cables can be applied to reduce the project cost.
02
Appearance & Interior Customization
Customize the appearance shape (curved surface, streamline, special shape, etc.), exterior decoration materials (color steel plate, aluminum alloy plate, glass curtain wall, stone, etc.) and color according to the customer's aesthetic needs, urban cultural characteristics and airport positioning. Customize the interior layout, including check-in area, security inspection channel, waiting hall, boarding gate, VIP lounge, commercial area, catering area, etc., to meet the functional needs of passenger flow organization and improve the passenger travel experience. The roof can be customized with light-transmitting membrane materials or glass curtain walls to improve lighting effects and reduce energy consumption.
03
Material Customization
According to the customer's budget, use environment and local standards, select appropriate steel materials (Q235B, Q355B, ASTM A36, etc.), thermal insulation materials, sound insulation materials, decoration materials and new materials (carbon fiber cables). All materials meet international environmental protection and quality standards, and can be customized according to the anti-corrosion, anti-freezing and other requirements of different regions (such as coastal anti-corrosion treatment, plateau anti-freezing design).
04
Supporting Facilities Customization
Customize supporting facilities according to the customer's use needs and airport grade, including intelligent check-in system, security inspection system, luggage sorting system, passenger flow monitoring system, air conditioning and ventilation system, fire protection system, emergency evacuation system, boarding bridge connection, commercial area, catering area, VIP lounge, etc. It can also be integrated with intelligent operation and maintenance systems and digital twin systems to realize intelligent operation and management of the terminal and improve operation efficiency.
05
Airport Grade Customization
Customize according to the airport grade (4E, 4F, regional airport, general airport, etc.), and design corresponding span, area and supporting facilities to meet the functional needs of different grades of airports. It can be designed for large international hub airports with annual passenger throughput of tens of millions of people, as well as regional airports with small and medium passenger flow.
06
Regional Adaptation Customization
According to the climate and geological conditions of the customer's location, carry out targeted customization, such as anti-corrosion treatment for coastal areas (preventing sea salt erosion and typhoon damage), anti-freezing design for plateau areas, and seismic reinforcement design for earthquake-prone areas. Optimize the building shape and ventilation system according to the local climate characteristics to ensure that the terminal can adapt to the local natural environment and meet the local building codes.
07
Export & Installation Customization
Provide global export transportation services, including container packaging, customs declaration, shipping, etc., to ensure that the components are safely transported to the customer's designated location (adapt to sea transportation, land transportation and other modes). Provide on-site installation guidance services, send professional engineers to the site to guide hoisting and assembly, adopt hydraulic synchronous lifting and BIM digital pre-assembly technologies to ensure the construction quality and construction safety, and provide technical training for the customer's staff. Provide long-term after-sales maintenance services and technical support to solve the worries of customers in the later stage.
08
Standard Compliance Customization
According to the import standards, aviation industry norms and building codes of the customer's country, customize the product design and production, ensure that the product meets the local CE, ASTM, ISO and other certification requirements, and provide relevant certification documents to ensure smooth customs clearance and avoid quality inspection risks. The deflection limit, load-bearing capacity and other indicators fully comply with the local design specifications and aviation industry standards.
30-300 meters (customizable according to needs), the maximum span can reach 300 meters (grid/cable dome structure) [2]
Building Area
5000-500000 ㎡ (customizable according to airport scale and passenger flow needs), the maximum single terminal area can reach 600000 ㎡
Passenger Flow Capacity
1000-100000 passengers per hour; annual passenger capacity can reach 48 million-63 million passengers (customizable according to airport grade)
Seismic Grade
Grade 8-9, in line with international seismic standards; deflection limit ≤L/250 (L is the plate span)
Wind Resistance Grade
Grade 10-12, can resist strong winds of 25-32.6m/s; wind load: 0.6-1.2kN/㎡ (according to 50-year return period); typhoon resistance design for coastal areas
Fire Rating
Grade A1 (non-combustible), fireproof coating, fire resistance limit ≥2.5 hours; equipped with intelligent fire detection, fire-fighting robot and fire-fighting sprinkler system
Service Life
50-100 years (depending on material quality and later maintenance)
Construction Cycle
Factory prefabrication: 45-90 days; on-site hoisting and assembly: 60-180 days (depending on span and area); BIM digital pre-assembly is adopted to improve construction efficiency
Roof Structure
Grid structure, truss structure, cable dome structure, membrane structure (optional); light-transmitting membrane or glass curtain wall can be selected; carbon fiber cable tension structure is optional
Intelligent check-in system, security inspection system, luggage sorting system, passenger flow monitoring system, air conditioning and ventilation system, fire protection system, emergency evacuation system, VIP lounge, commercial area, catering area, boarding bridge connection (customizable according to airport needs)
